Thread Length: 0.250 Inches Minimum And 0.312 Inches Maximum
Fastener Length: 0.281 Inches Minimum And 0.312 Inches Maximum

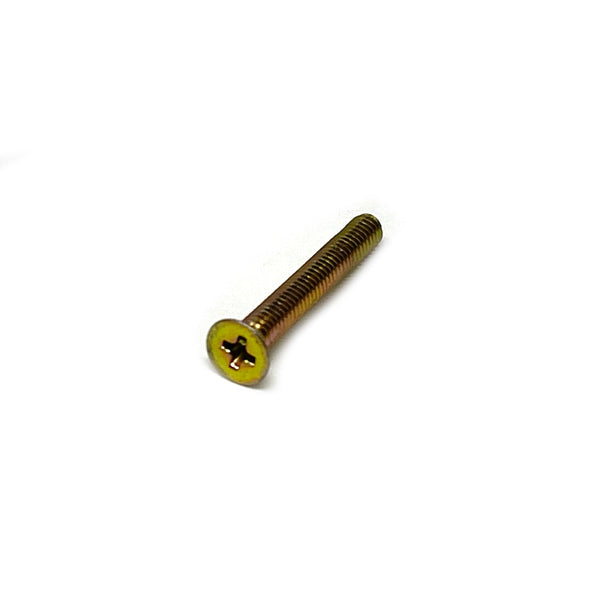

Head Style: Flat Countersunk
Head Diameter: 0.285 Inches Minimum And 0.332 Inches Maximum
Internal Drive Style: Cross Recess Type 1
Nominal Thread Diameter: 0.164 Inches
Thread Quantity Per Inch: 32
Minimum Tensile Strength: 60000 Pounds Per Square Inch
Countersink Angle: 99.0 Degrees Minimum And 101.0 Degrees Maximum
Screw Material: Steel Comp 1010
Screw Material Document And Classification: Qq-S-630 Fed Spec Single Material Response Or Qq-S-631 Fed Spec Single Material Response Or Qq-S-634 Fed Spec Single Material Response
Screw Surface Treatment: Cadmium And Chromate
Screw Surface Treatment Document And Classification: Qq-P-416 Ty 2 Cl 3 Fed Spec All Treatment Responses
