EC Series - Caps For Threaded Connectors (Bulk Pack)

Caplugs

We currently have 47 available for will call.

Sale price $5.13 Regular price ~~$22.00~~

Size

Count

Quantity

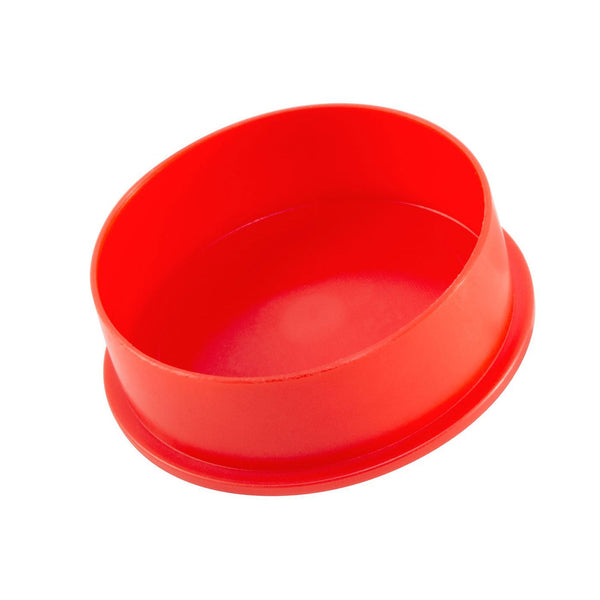

EC Series caps are designed to fit threaded connectors. This series is designed for easy application and removal in areas not readily accessible.

Can be installed over threads or cylindrical surfaces

Material: Low-density polyethylene
Service Temperature: -94 - 175° F (-70 - 79° C)
Standard Color: Red
Applicable Specs: NAS 83

Item #	To Cap Nominal Thread Size	Dim A (In)	Dim B (In)	Dim C (In)	Dim D (In)
EC-4	1/4	0.246	0.48	0.50	0.31
EC-M8	M8	0.309	0.55	0.56	0.37
EC-5	5/16	0.308	0.55	0.56	0.37
EC-6	3/8	0.369	0.62	0.50	0.43
EC-8	1/2	0.480	0.74	0.50	0.54
EC-9	9/16	0.551	0.78	0.44	0.61
EC-10	5/8	0.605	0.84	0.50	0.66
EC-12	3/4	0.720	0.97	0.50	0.77
EC-14	7/8	0.850	1.13	0.50	0.90
EC-15	-	0.930	1.20	0.50	1.01
EC-16	1	0.973	1.22	0.50	1.03
EC-18	1 1/8	1.093	1.33	0.56	1.15
EC-19	1 3/16	1.188	1.40	0.56	1.23
EC-20	1 1/4	1.231	1.47	0.56	1.30
EC-22	1 3/8	1.340	1.59	0.56	1.41
EC-23	1 7/16	1.428	1.65	0.56	1.46
EC-24	1 1/2	1.463	1.70	0.56	1.53

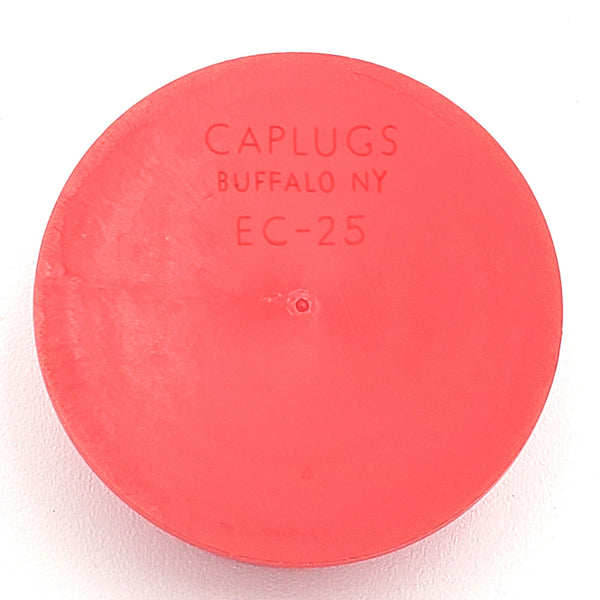

EC-25	1 9/16	1.528	1.73	0.48	1.59

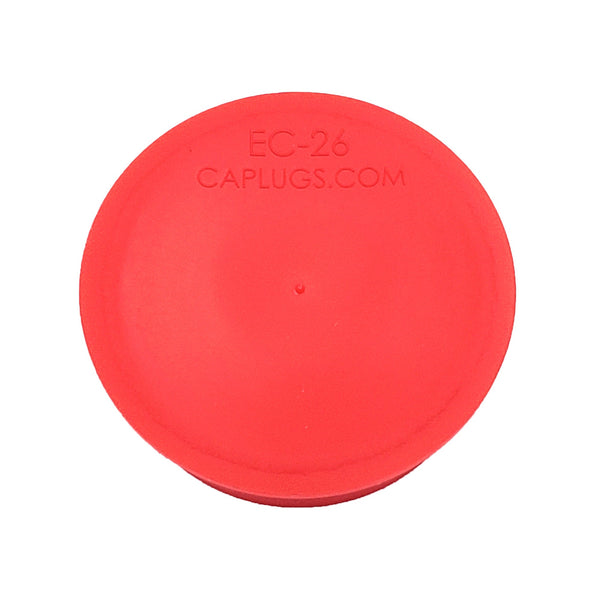

EC-26	1 5/8	1.613	1.91	0.55	1.71

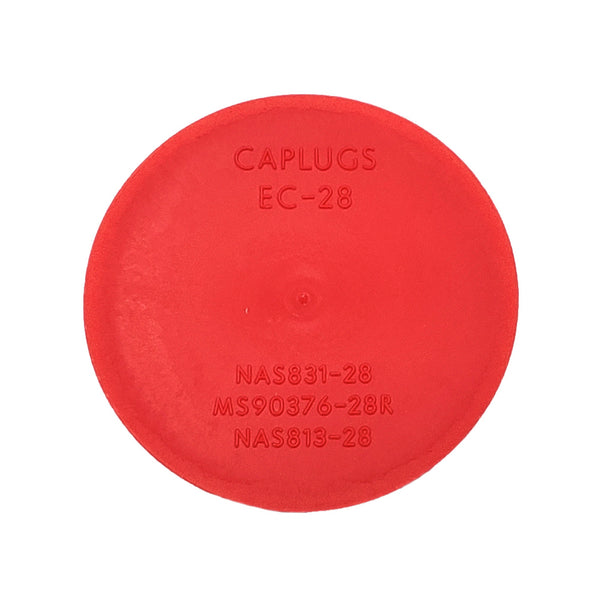

EC-28	1 3/4	1.715	1.95	0.56	1.79
EC-32	2	1.965	2.22	0.56	2.04
EC-36	2 1/4	2.215	2.43	0.60	2.29
EC-40	2 1/2	2.456	2.68	0.62	2.52
EC-44	2 3/4	2.720	2.96	0.60	2.81
EC-48	3	2.960	3.23	0.60	3.05
EC-64	4	3.940	4.16	1.00	4.00
EC-80	5	4.944	5.12	1.25	5.00
