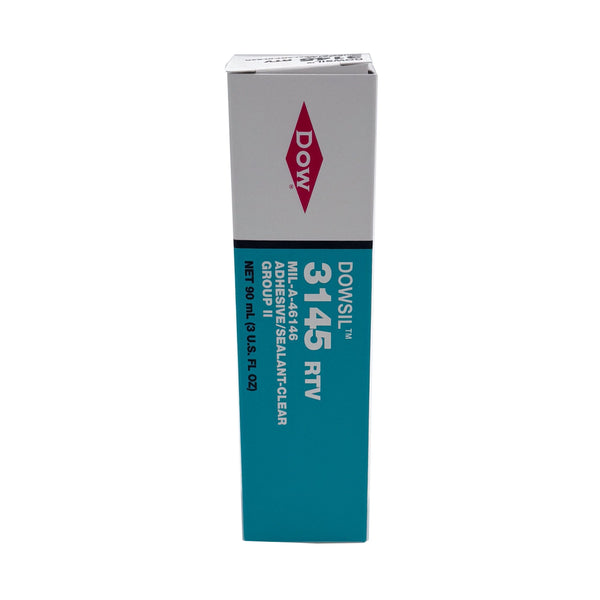

Dow Corning - RTV-3145 Silicone Sealant - 3oz - Clear

Dow Corning

We currently have 54 avialable for will call.

Regular price $63.61

Dow Corning 3145 1-part, translucent, non-flowing adhesive, high tensile strength and elongation, MIL-A-46146 tested

  • Sealing openings in modules and housings
  • Adding mechanical stability to individual components
  • Assembly of components on PWB
  • Sealing in and around wired and electrical leads
  • Yoke assembly
  • Automated or manual needle dispense systems

Dow Corning - RTV-3145 Silicone Sealant Product Description:

Dow Corning RTV3145 brand one-part moisture cure adhesives are generally cured at room temperature and in an environment of 30 to 80 percent relative humidity eliminating the need for curing ovens and the associated costs of energy and capital. Greater than 90 percent of full physical properties should be attained within 24 to 72 hours and varies according to product. Faster manufacturing throughput can be achieved since the adhesive and component can be handled in much shorter times of about 10 to 120 minutes, depending on the adhesive selected and the amount applied. These adhesives are not typically used in highly confined spaces or where a deep section cure is required as they generally cure from the exposed surface inward at a rate of 0.25 inch per seven days. Cure progresses from the outer exposed surface and is dependent on the moisture in the air. Working time is generally a few minutes to an hour for these products until a surface skin begins to form. Mild heat below 60 °C (140 °F) may be used to increase through-put by accelerating the cure. Dow Corning brand adhesives retain their original physical and electrical properties over a broad range of operating conditions which enhance the reliability of and service life of electronic devices

Dow Corning - RTV-3145 Silicone Sealant - 3oz - Clear Product Specifications:

  • UOM : Tube
  • Size : 3 oz
  • Color : Clear
  • Shipping Weight : 0.5 pounds
  • Manufacturer P/N : 1610431
  • Alt. P/Ns : DC 3145 CLEAR, RTV3145-30Z
  • NSN : 8040-00-117-8510
  • Military Standard : MIL-A-46146, MIL-A-46146 GP2 TY1
