Cherry - Universal Head Rivet, 100 Pack | CR3213-4-06

CherryMAX® is a locked spindle blind rivet with a visibly inspectable mechanical locking device and its own installation washer, which eliminates the problems resulting from worn tool anvils. It is called a bulbed fastener due to its large blind side bearing surface, developed during the installation process. CherryMAX® rivets are used in thin sheet applications and for use in materials that may be damaged by other types of blind rivets. The CherryMAX® rivet is the most reliable, high strength structural fastener with visual inspectability in the world today. It features the safe-lock locking collar for more reliable joint integrity and meets the requirements of PS-CMR-3000. CherryMAX® tooling provides the simplest, most trouble-free installation tooling system. CherryMAX® fasteners are currently available in 1/8 through 1/4 in diameters in both nominal and 1/64 in oversize diameters. The tools use a single pulling head to install many diameters, head configurations and material combinations.

FEATURES
• A fully serrated stem with break notch, shear-ring and integral grip adjustment cone
• A driving anvil to insure a visible mechanical lock with each fastener installation
• A separate, visible and inspectable locking collar that mechanically locks the stem to the rivet sleeve
• A rivet sleeve with recess in the head to receive the locking collar

SPECIFICATIONS
• Series: CR3213
• Diameter: 1/8 in
• Length: 1.624 in
• Head Diameter: 1/4 in
• Head Height: 0.054 in
• Head Type: Universal
• Hole Size: 0.129 to 0.132 in
• Shank Diameter: 0.188 to 0.192 in
• Shank Style: Self-Plugging Mechanically Locked Stem
• Tensile Strength: 285 lb
• Shear Strength: 664 lb
• Grip Range: 0.313 to 3/8 in
• Sleeve Material: Aluminum
• Stem Material: Aluminum Alloy

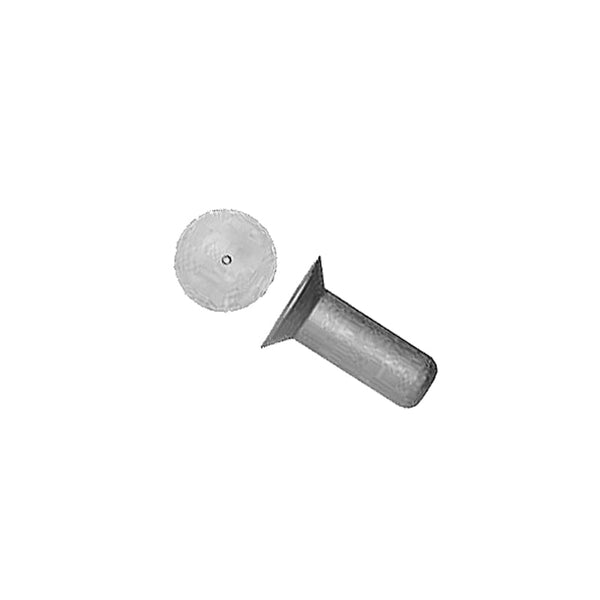

Mili Std - Aluminum 100° Flush Head Rivet, Solid 1lb | MS20426AD4-5
